Caustic Soda (Sodium Hydroxide) Flakes vs Pearls vs Liquid: Specification & Sourcing Guide

A procurement manager in Nairobi's Industrial Area recently asked why two quotations for "Caustic Soda 99%" had a 15% price difference. The chemical formula on both certificates was identical: NaOH, CAS 7647-01-0. The assay on both lab sheets read 99.0% minimum.

Yet on the production floor, one operator was battling hardened lumps inside mixing hoppers, while the other facility was running continuous dosing without a hitch.

The difference was not the molecule. It was the physical geometry and manufacturing grade of the product.

In East African manufacturing, Sodium Hydroxide is one of the most heavily consumed raw materials. It cleans dairy pasteurizers in Naivasha, saponifies oils into laundry bars in Thika, adjusts acidic effluent in Athi River textile mills, and refines vegetable oil in Mombasa.

Understanding the practical differences between Caustic Soda Flakes, Micro-Pearls, and 50% Liquid Lye is essential for plant managers, process engineers, and commercial buyers.

---

1. Comparing the Physical Formats

While all commercial caustic soda delivers alkaline hydroxide ions ($OH^-$), how the chemical enters your process determines handling safety, dissolution speed, and batch consistency.

Caustic Soda Flakes (99% Purity)

Flakes are produced by cooling molten sodium hydroxide on rotating flaker drums. The resulting product consists of thin, semi-translucent irregular white wafers.

• Primary Strength: High surface-area-to-mass ratio allows rapid dissolution in agitated liquid tanks.
• Best Fit: Saponification in soap making, hot chemical blending, batch detergent formulation, and manual chemical addition tanks.
• Handling Characteristic: Fragile edges can generate fine alkaline dust when bags are dropped or roughly handled, requiring strict respiratory PPE during charging.

Caustic Soda Pearls / Prills (99% Purity)

Pearls are manufactured by spraying molten caustic through a prilling tower. As droplets descend against upward cold air, they solidify into smooth, uniform spherical beads (approx. 0.5 mm to 1.2 mm diameter).

• Primary Strength: Outstanding bulk flowability. Pearls pour almost like dry sand, preventing hopper bridging and chute blockages.
• Best Fit: Automated metering feeders, dry-blending powder formulations, screw conveyors, and facilities prioritizing low-dust operator environments.
• Handling Characteristic: Higher bulk density than flakes (approx. 1.15–1.20 g/cm³ vs 0.90–1.00 g/cm³), meaning smaller physical storage volume per metric tonne.

50% Liquid Caustic Soda (Rayon / Membrane Grade)

Liquid caustic soda is delivered ready-to-use at 50% concentration (w/w). It is the direct liquid output of chlor-alkali membrane electrolysis cells before thermal evaporation.

• Primary Strength: Zero on-site dissolution labor and complete elimination of airborne dust hazards.
• Best Fit: Continuous CIP cycles in major food & beverage plants, automated municipal water dosing, and large-scale textile dyeing mills.
• Handling Characteristic: Highly viscous at ambient temperatures below 15°C; requires dedicated caustic-resistant chemical pumps and insulated bulk storage tanks.

---

2. Chemical Dissolution & The Exothermic Trap

One of the most common factory floor accidents involves dissolving solid caustic soda incorrectly.

When Sodium Hydroxide flakes or pearls dissolve in water, the hydration of sodium and hydroxide ions releases significant thermodynamic energy:

$$\Delta H_{dissolution} \approx -44.5 kJ/mol$$

Critical Safety Rule: Always add solid caustic soda slowly into cold water under continuous mechanical agitation. Never add water onto dry caustic soda, and never use hot water as the starting base.

If water is poured into a drum containing dry caustic flakes, localized boiling occurs almost instantly. The resulting steam bubble expansion violently ejects concentrated, boiling-hot alkaline liquor out of the vessel, causing severe chemical and thermal burns.

For automated mixing tanks in Nairobi and regional facilities, charging must be pulsed in stages to ensure solution temperature does not exceed 60°C, which can degrade plastic-lined vessels or accelerate pipeline corrosion.

---

3. Storage, Atmospheric Caking & Humidity Challenges

Sodium Hydroxide is intensely hygroscopic and deliquescent. It actively extracts moisture vapor from the ambient air, followed by atmospheric Carbon Dioxide (CO_2) absorption:

$$2NaOH + CO_2 \longrightarrow Na_2CO_3 + H_2O$$

1. This reaction creates two major operational problems:
2. Loss of Active Alkalinity: The formed Sodium Carbonate reduces active caustic strength.
3. Rock-Hard Caking: Pallets stored in humid environments (particularly in Mombasa or coastal distribution depots) can fuse into solid, unpourable stone blocks within 6 to 8 weeks if bag liners are punctured.

Warehouse Storage Best Practices:

Keep pallets on raised plastic or treated wooden pallets at least 100 mm off concrete floors to prevent condensation wicking.

Keep outer stretch-wrap intact until the pallet is moved into the active batching line.

* Ensure damaged bags with ripped internal polyethylene liners are isolated and consumed immediately.

---

4. Industry Sourcing & Selection Matrix

Industry / Application — Recommended Format — Key Reason — Alternative

Soap & Detergent Manufacturing — 99% Flakes — Fast dissolution in hot batch kettles; cost-effective — 99% Pearls

Dairy & Beverage CIP Cleaning — 50% Liquid Lye or 99% Pearls — Clean flow in dosing pumps; zero dust in food zones — 99% Flakes

Water Treatment pH Neutralization — 99% Pearls or 50% Liquid — Precise automated dosing without clogging injectors — 99% Flakes

Textile Scouring & Mercerization — 99% Flakes — High-volume batch bath preparation — 50% Liquid

Vegetable Oil Refining (Degumming) — 99% Pearls — High-purity low-chloride grade protects fatty acid color — 50% Liquid

---

5. Procurement Checklist for Factory Buyers

When sourcing Caustic Soda for industrial operations in Kenya, verify these technical checkpoints on your supplier's Certificate of Analysis (COA):

1. Assay (NaOH Content): Must exceed 99.0% for solid flakes/pearls, or 48.0%–50.5% for liquid grade.
2. Sodium Carbonate (Na_2CO_3): Should not exceed 0.4% in fresh stock. Levels above 1.0% indicate aged or moisture-compromised material.
3. Sodium Chloride (NaCl): Membrane grade should remain below 0.02% (200 ppm). High chloride content accelerates pitting corrosion in stainless steel food equipment (SS304/SS316).
4. Iron Content (Fe): Must be below 10 ppm for textiles and cosmetics to avoid yellow discoloration.

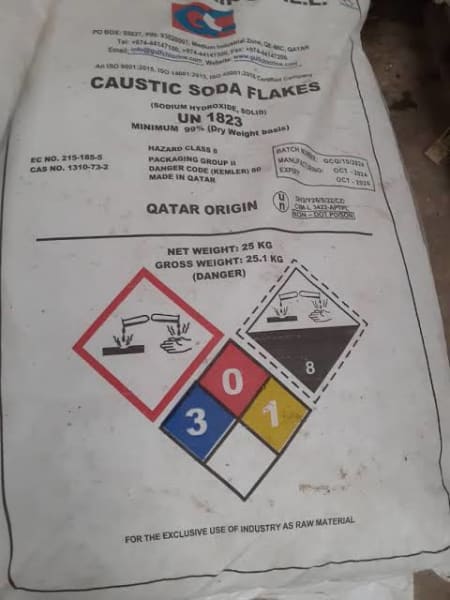

5. Packaging Standard: Verified 25kg net weight multi-ply PP woven sacks with heat-sealed internal PE liner, carrying clear GHS hazard labels (Corrosive 8, UN 1823).

---

6. Summary: Sourcing Beyond the Price Tag

The cheapest bag of caustic soda on a price quotation often becomes the most expensive material on your factory floor if high insolubles clog your nozzles or poor packaging leads to caked raw material.

Look closely at your process equipment: if your team charges manual batch tanks with hot water, flakes offer fast dissolution. If you rely on automated pneumatic transfer or hopper feeding, pearls prevent downtime. And if your plant runs continuous automated CIP, liquid lye provides unmatched safety and precision.

Understanding what your process genuinely demands is what separates standard chemical purchasing from strategic industrial procurement.
